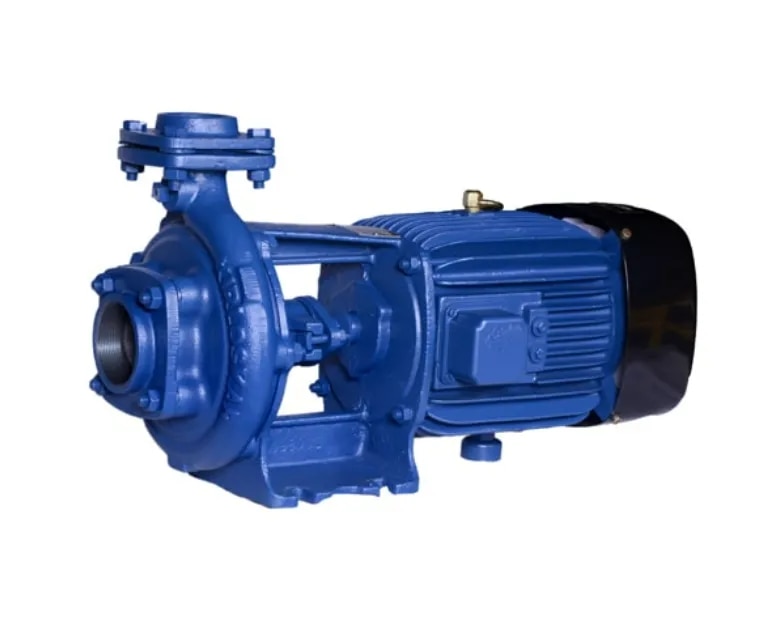

Agriculture Monobloc pump by Kirloskar

APPLICATIONS

Air Conditioning and Refrigeration System

Cooling Towers

Clear Water Handling at High Pressure in Industries

Irrigation in Horticulture & Agriculture

Firefighting System

SPECIFICATIONS

Head Range: Up to 76 metres

Discharge Range: Up to 49 LPS

Power Ratings: 0.37 to 22 kW (0.5 to 30 HP)

Voltage Range: 300 to 440 volts (three phase)

Insulation: B class (up to 7.5 HP)/F class (above 7.5 HP)

Protection: IP 44 / IP 55

MATERIAL OF CONSTRUCTION

GMC

Impeller: Cast Iron/Bronze/Noryl

Delivery Casing: Cast Iron

Motor Body: Cast Iron

Pump Shaft: Carbon Steel/Stainless Steel

Sealing: Mechanical Seal

KDS

Impeller: Cast Iron/ Bronze/Stainless Steel

Delivery Casing: Cast Iron

Motor Body: Cast Iron

Pump Shaft: Carbon Steel/Stainless Steel

Sealing: Gland Packed/Mechanical Seal

FEATURES

Flatter Efficiency Curve

Wide Voltage Design

Designed to Prevent Overloading

Replaceable Wearing Parts

Dynamically Balanced Rotating Parts

CED – Cathode Electro Deposition Coating

Automatic Air Release

High Efficiency and Energy Saving Design
